Road Furniture
Reflective Markings
Retroreflective markings for the furniture that lines the road — delineators and guide posts, crash barriers and railings, chevron boards, hazard markers, kerbs and work-zone equipment. Made in Ahmedabad in engineer-grade to prismatic sheeting, in the colours and fixings your road class and furniture profile call for.
At night, the road edge is only as visible as its furniture.
Lane markings wear and disappear under rain and headlight glare. Delineators, barrier reflectors and chevrons stand above the road surface and return headlight beams straight back to the driver, outlining the curve, the median and the barrier long before the road itself is visible. Where they are missing or faded, drivers lose the road's alignment exactly where they need it most.
Colour and placement carry meaning — they are not decoration.
Delineation follows a convention drivers read instantly: white on the left edge, yellow on the median, red/white or black/yellow patterns for hazards and curves. A marker in the wrong colour, or a chevron board pointing the wrong way, sends the opposite message. We confirm colour, orientation and spacing against your drawing and IRC practice before production.
The fixing matters as much as the sheeting.
A reflector that rotates on its bolt, peels off a curved barrier or cracks on a flexible post is lost within a season. Rigid aluminium plates suit posts and brackets, polycarbonate bodies suit high-impact positions, and flexible PET film conforms to soft barriers and cylindrical surfaces. We match the body and fixing to the furniture it goes on.
Marker Types
Three Families. One Manufacturer.
Delineators for road edges and medians, reflectors for barriers and railings, and chevron and hazard markers for curves and obstructions — produced on the same retroreflective sheeting and documentation process. Tell us the furniture, road class and quantities.
| Property | Delineators | Barrier & Railing Markers | Chevrons & Hazard Markers |
|---|---|---|---|
| Used On | Guide posts, road edges, medians | W-beam, concrete barriers, railings | Sharp curves, hazards, culverts |
| Typical Form | Reflector plate or moulded reflector | Bracket-mounted reflector or strip | Printed board with chevron pattern |
| Colour Coding | White left edge / yellow median | White or yellow by side of road | Black / yellow or red / white pattern |
| Sheeting Grade | High-intensity or prismatic | High-intensity or prismatic | Engineer to prismatic by road class |
| Fixing | Bolt or rivet to post | Bracket into barrier bolt, or PSA | Post clamp or bracket |
Marker Construction
Built for the Roadside
Eight layers — from UV overlaminate and printed pattern, through the retroreflective sheeting and marker body, to the sealed edge and mounting hardware — each chosen for years of sun, rain, dust and vibration at the roadside.
L-01
UV-Stable Overlaminate
Clear Topcoat over Printed Chevrons & Legends
L-02
Printed Pattern / Legend
Chevron, Hazard Stripe or Directional Arrow
L-03
Retroreflective Sheeting
Engineer, High-Intensity or Prismatic Grade
L-04
Colour Field
White, Yellow, Red, Fluorescent Yellow-Green / Orange
L-05
Pressure-Sensitive Adhesive
Outdoor-Grade PSA Matched to Substrate
L-06
Marker Body / Substrate
Aluminium Plate, Polycarbonate or Flexible PET
L-07
Edge Seal
Sealed Edge to Resist Water & Dust Ingress
L-08
Mounting Hardware
Bracket, Bolt, Clamp or Adhesive Fix to Furniture
Technical Parameters
Marking Specifications
Typical parameters for our road furniture marking range. Grade, colour, size and fixing depend on road class and the furniture being marked — share your drawing or site schedule for confirmation.
What We Mark
Every Piece of Road Furniture.
Delineators, barriers and railings, curves and hazards, and temporary work-zone equipment — each with its own colour convention, sheeting grade and fixing.
Delineators & Guide Posts

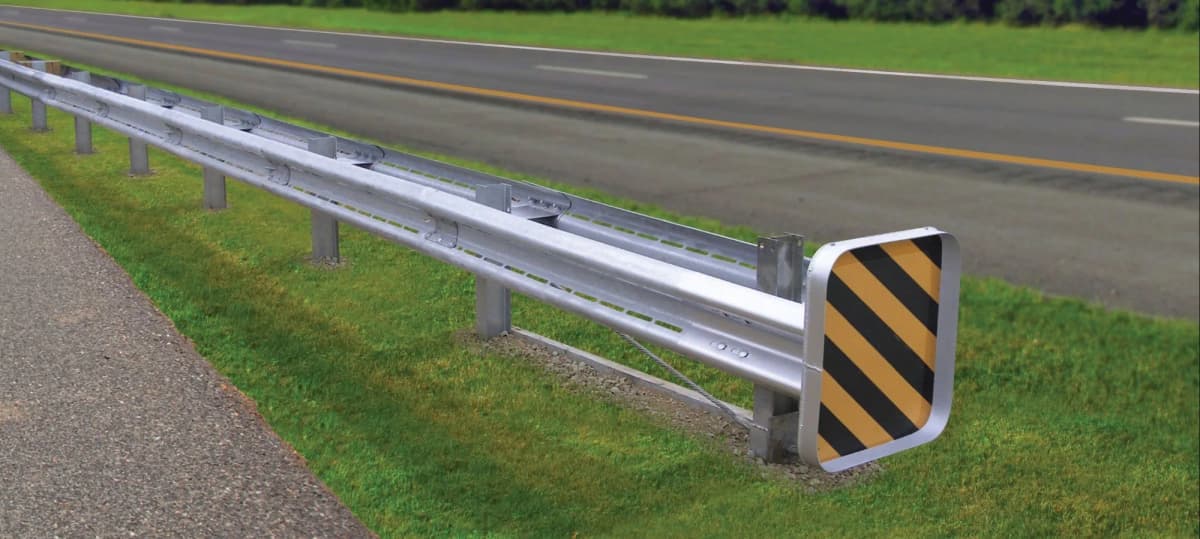

Barrier & Railing Marking

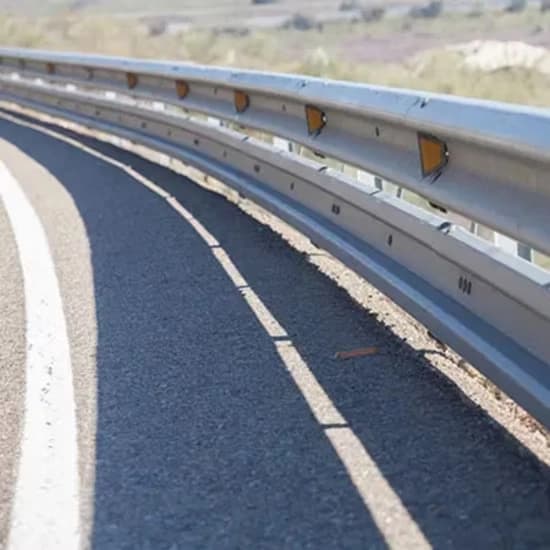

Curves, Chevrons & Hazards
Work Zone & Temporary Marking
Capabilities
Feature & Build Variants
Marker type, sheeting grade, colour, body material, sidedness, fixing and documentation — configured to your furniture and road specification.
Quality & Documentation
Documentation for Handover
Test reports, approval drawings and material details for contractor and authority acceptance — available with your order on request.
Retroreflectivity Test Reports
Retroreflectivity (RA) readings for each colour and sheeting grade in a delivery, measured on a portable retroreflectometer and compared against the specified grade minimum. Available on request with each batch for authority acceptance and contractor handover files.
Approval Drawings
Drawings for each marker type — dimensions, chevron or stripe geometry, colour, sheeting grade, substrate and fixing method — shared for your or the authority's review before production, with revisions tracked across repeat orders.
Material Conformance
Sheeting manufacturer data and substrate material details for the batch, supplied with the documentation package so the reflective grade and base material can be traced back to source.
Scheduled Release Supply
For corridor and maintenance contracts, a single order can be released in tranches matched to your installation schedule — keeping colour and reflective grade consistent across every delivery.
Applications
Where Our Markings Are Fitted
From highway curves, medians and bridges to urban junctions, work zones, industrial estates and private campus roads.
Reflective & Safety Range
Related Products
Road Safety Signs
IRC:67 mandatory, cautionary and informatory signs on aluminium with retroreflective sheeting, plus post and hardware supply.
Traffic Marking Graphics
Retroreflective traffic marking graphics and road sign films for infrastructure projects.
Retroreflective Stickers
Engineer grade to prismatic retroreflective stickers for vehicle conspicuity, hazard chevrons and site marking.
Every Curve Marked.
Every Barrier Visible.
Share the furniture type, road class, colour scheme, fixing method and quantities — or your site schedule — and we'll come back with a specification and a manufacturing quote.
