Road Safety
Signs & Post Systems
IRC:67-compliant road safety signs — mandatory, cautionary, and informatory — manufactured on IS 15058 aluminium to Diamond Grade prismatic retroreflective specification, with screen-print and digital UV legend, post and hardware supply, and full batch documentation for NHAI, state PWD, municipal corporation, and construction zone temporary traffic management programmes across national highway, urban road, and expressway environments.
A road sign that fails the minimum RA threshold is not a compliant road sign — it is an aluminium board.
IRC:67 and ASTM D4956 set minimum retroreflectivity (RA) values for each sign class at defined observation and entrance angles. A sign that falls below minimum RA — because it was manufactured with the wrong film grade, because the film has degraded before its rated service life, or because it was never tested — does not meet the standard regardless of how bright it looks in daylight. Highway authority procurement under NHAI and state PWD frameworks requires documented retroreflectivity test data for each delivery batch; a sign supplied without that data cannot be formally accepted under the contract terms.
IRC:67 geometry is exact — sign size, border width, and symbol proportions are not aesthetic choices.
The sign manual defines every dimension: circle and octagon diameter by road class, triangle side length, border width as a fraction of sign dimension, letter height and font family for legends, symbol proportions for pictographic signs. A stop sign that is 550 mm instead of 600 mm, or has a 15 mm border instead of the specified 22 mm, is a non-conforming sign. For road authority programmes, a non-conforming sign is a financial risk — it may not be accepted at handover, may need replacement before the rated service life, and creates liability in the event of an accident attributable to missing or substandard signing.
Construction zone signing is its own standard — IRC:SP:55 — and fluorescent film is the specification.
Temporary traffic management signs in construction and maintenance zones are governed by IRC:SP:55, which mandates fluorescent orange or fluorescent yellow retroreflective film for temporary warning and regulatory signs — not standard white or yellow film. The higher conspicuity of fluorescent film is the reason for the specification: workers and drivers need to distinguish temporary from permanent signs at speed and in adverse light. Supplying standard yellow or white retroreflective film for construction zone signs is a specification error, not a cost-saving measure.
IRC:67 Sign Series
Three Series. One Manufacturer.

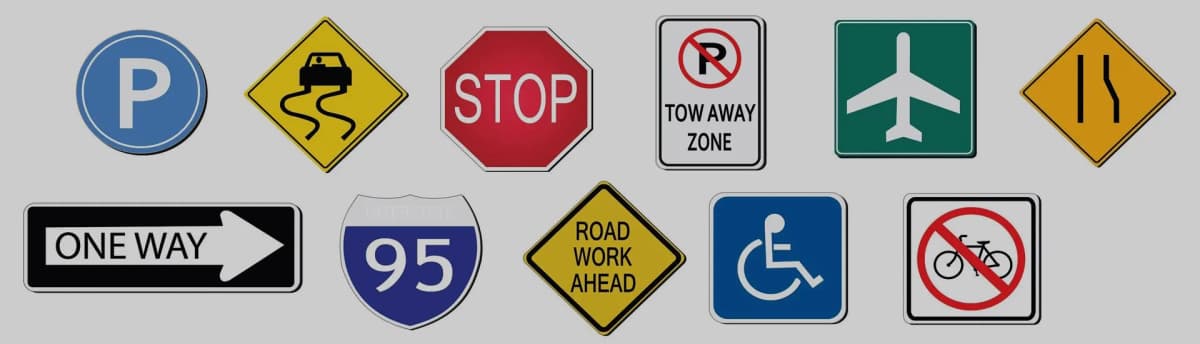

Series A mandatory signs, Series B cautionary signs, and Series C informatory signs — all produced on the same IS 15058 aluminium substrate and Diamond Grade prismatic retroreflective system with the same batch documentation process. Tell us the sign series, road class, and quantities — we supply to specification.
| Property | Series A — Mandatory | Series B — Cautionary | Series C — Informatory |
|---|---|---|---|
| IRC:67 Series | Series A — Mandatory | Series B — Cautionary | Series C — Informatory |
| Shape | Circle (Prohibitory) / Octagon (Stop) | Equilateral Triangle — Point Up | Rectangle / Square |
| Ground Colour | White (Prohibitory) / Red (Stop) | Yellow | Blue (Facilities) / Green (NH) / White |
| Border Colour | Red | Red | Colour-matched or White |
| Min. Retro Grade (NH) | High-Intensity Type III (Diamond preferred) | High-Intensity Type III (Diamond preferred) | Engineer Grade Type I (HI for NH) |
| Standard Size Range | 450 mm / 600 mm / 900 mm dia. | 450 mm / 600 mm / 900 mm side | 450×600 mm to 1200×2400 mm |
Sign Construction
Built to Last the Road
Eight construction layers — from the UV overlaminate and screen-print legend, through Diamond Grade prismatic sheeting and IS 15058 aluminium blank, to folded edge return and post clamp hardware — each specified for ten to twelve years of outdoor road-facing service in tropical, arid, and coastal Indian road environments.
L-01
Anti-Graffiti Overlaminate
UV-Stabilised Clear Matte or Gloss Topcoat
L-02
Screen-Print Legend & Symbol
IRC:67 Symbol, Border & Legend in UV-Stable Inks
L-03
Retroreflective Sheeting
Diamond Grade Type IV Prismatic (Motorway / NH)
L-04
Colour Base Film
Signal Red, Yellow, White, Green, Blue per IRC:67
L-05
Structural Adhesive Bond
High-Tack PSA or Structural Adhesive to Substrate
L-06
Aluminium Sign Blank
IS 15058 / 5052-H32 Alloy, 0.8 mm – 1.2 mm
L-07
Edge Fold & Back Seal
Folded Edge Return, Polyester or Epoxy Back-Coat
L-08
Post Clamp / Channel Frame
76 mm / 101 mm U-Channel Post or Square Post Clamp
Technical Parameters
Road Sign Specifications
Standard performance and material parameters for our IRC:67 road safety sign range. All values sign-class and road-category dependent — specify your road class, design speed, and service life requirement for full confirmation.
Supply Programmes
Every Road Programme. Every Authority.
National highway, urban municipal, construction zone temporary, and overhead gantry supply — each programme has its own specification, film grade, documentation requirement, and post hardware. We manufacture and document to each one.
National & State Highway Supply
Urban & Municipal Road Signs
Construction Zone Temporary Signs

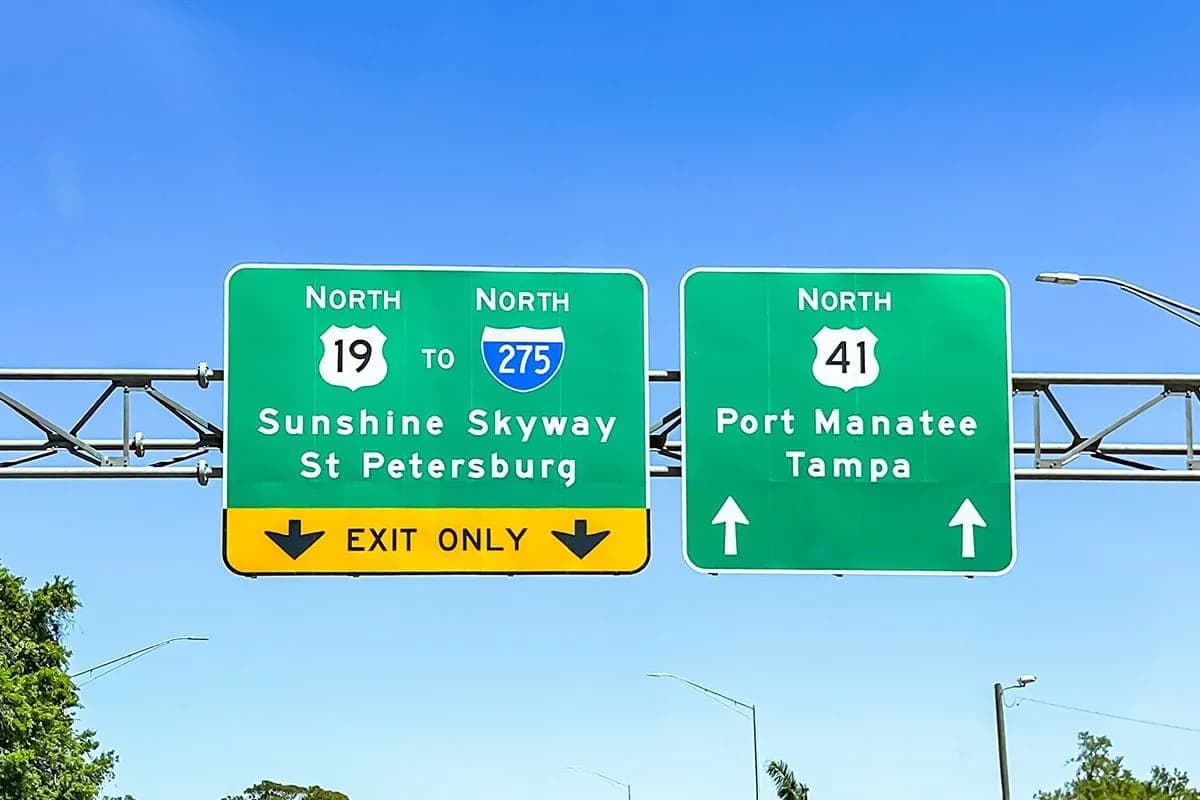

Overhead & Gantry Sign Panels
Capabilities
Feature & Build Variants
Sign series, retroreflective grade, substrate thickness, film colour, print method, edge treatment, post system, documentation package, and supply format — every variable configured to your road authority or programme specification.
Quality & Documentation
Documentation That Passes Audit
Retroreflectometer test reports, IS 15058 material certificates, IRC:67 approval drawings, and blanket order supply documentation — produced as standard for every road authority sign programme, not available as optional extras.
Batch Retroreflectometer Test Report
Every production batch tested on a calibrated portable retroreflectometer before dispatch. Test report states RA values at 0.2° observation and −4° entrance angle for each colour in the batch, compared against IRC:67 and ASTM D4956 grade minima. Supplied as a signed PDF for each delivery note — ready for inclusion in highway authority quality handover documentation and NQM audit files.
IRC:67 Compliance Approval Drawings
Sign approval drawings produced for every new sign type — symbol geometry, border width, letter height, colour specification reference, retroreflective film grade, substrate thickness, and post position all marked to IRC:67 dimensions. Drawings supplied in PDF and DWG format. Available for authority review before production starts; revision history maintained for multi-year supply contracts where sign specifications are updated between orders.
IS 15058 Material Conformance Certificate
Aluminium substrate certificate of conformance to IS 15058 / 5052-H32 alloy specification — stating temper, thickness, and mechanical properties for the sign blank material used in each production run. Material test certificate from the aluminium mill traceable to IS 2500 sampling plan. Supplied alongside retroreflectivity test report as part of the standard quality documentation package for highway authority and PWD sign procurement.
Volume Supply — Scheduled Release Against BPO
Blanket Purchase Order supply with scheduled release: road authorities submit a single BPO for annual or biannual sign replacement quantities; we manufacture to confirmed schedule and dispatch in tranches matched to installation programme. Eliminates emergency procurement delays, maintains retroreflectivity grade and colour consistency across all tranches, and provides a single audit trail for programme managers and finance teams handling multi-crore sign replacement budgets.
Applications
Authorities & Programmes Served
From NHAI national highway corridors and state PWD annual road maintenance programmes through municipal corporation urban road upgrades, construction zone temporary signing, and expressway overhead gantry supply.
Reflective & Safety Range
Related Products
Reflective Signage
Retroreflective sign plates on aluminium substrate for road, site, and industrial environments — Engineer through Diamond Grade, supplied blank or with printed legend, to IRC:67 and IS 15058.
Retroreflective Stickers & Marking
Engineer Grade to Diamond Grade retroreflective stickers on aluminium, polyester, and polycarbonate — for vehicle conspicuity marking, hazard chevrons, site boundaries, and rail marking.
Reflective Safety Labels
Retroreflective adhesive labels for equipment, machinery, and site asset identification — flexible PET substrate, screen-print or UV-print legend, in standard and custom shapes.
Every Sign Series.
Every Standard Met.
Share your sign series, road class, retroreflective grade requirement, post system, required quantities, and documentation requirements — we'll confirm the correct IRC:67 specification and supply approval drawings with your manufacturing quote.
