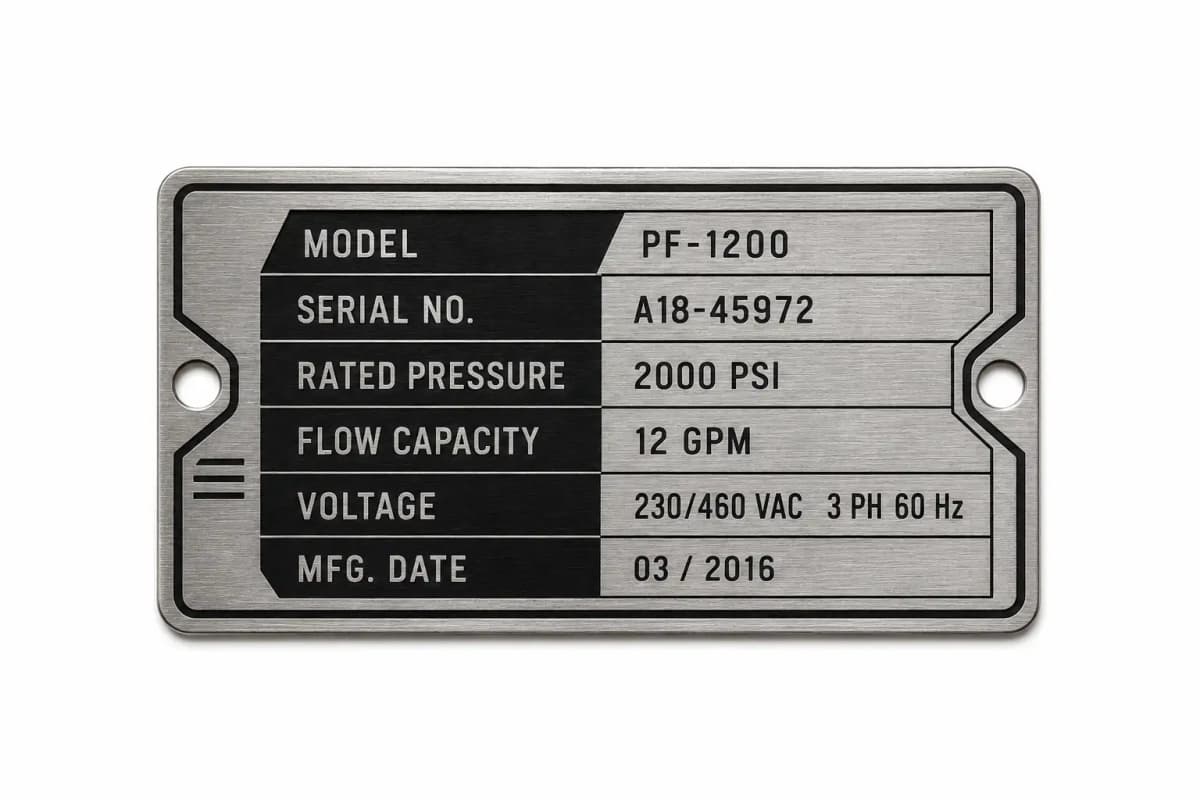

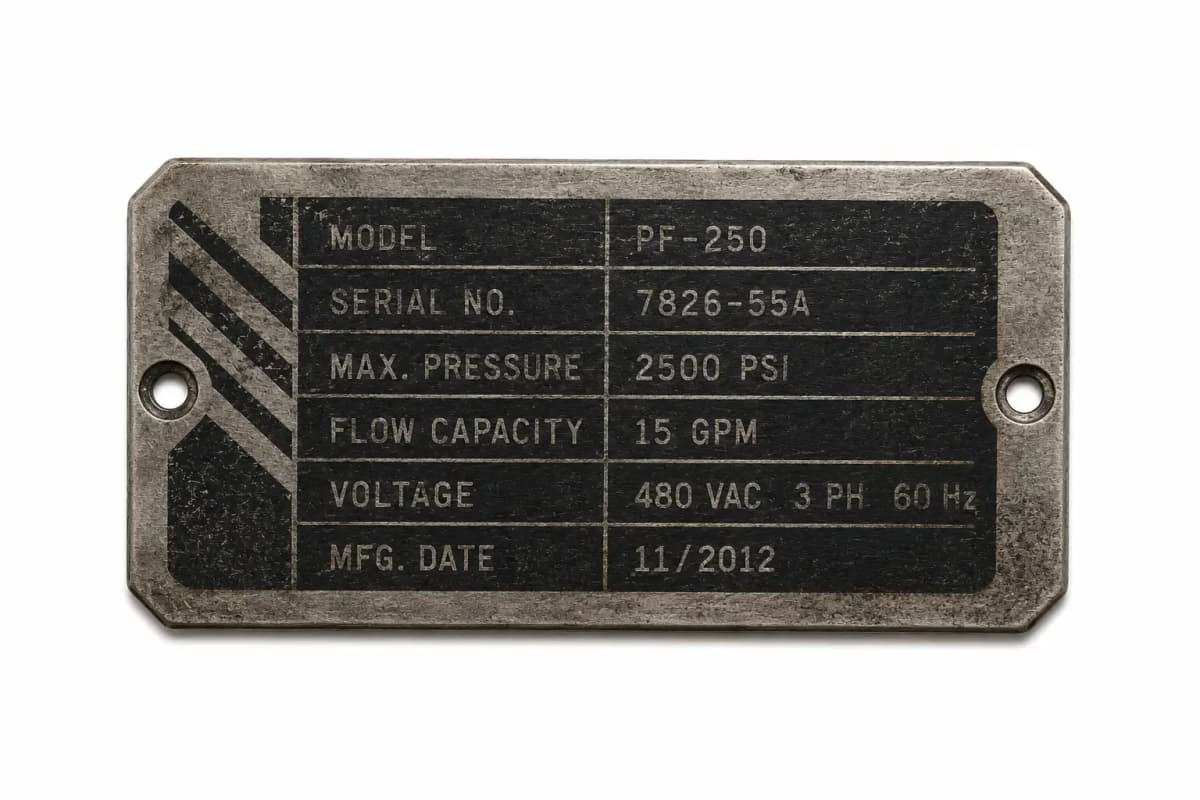

Anodized Aluminium
Labels
The legend is fused below the anodic oxide layer — not printed on top of it. Abraded, chemically drenched, or left in outdoor UV exposure for a decade: the mark remains. For equipment identification that must survive the machine's entire service life without replacement.
The legend is inside the metal.
Laser marking drives colour change into the anodic oxide layer — beneath the sealed surface. No ink, no coating, nothing that can flake or wear away.
The surface is harder than steel.
Type III hard anodise produces an Al₂O₃ layer rated at 60–70 Rc — harder than most tool steels. It resists scratching, abrasion, and industrial cleaning agents.
Colour that lasts the life of the product.
Dye sealed into anodic pores before the sealing treatment becomes part of the substrate. UV-stable, solvent-resistant, and non-fading in outdoor or harsh indoor environments.
Construction
Engineered Layer by Layer
Eight processing stages transform raw aluminium sheet into a sealed, colour-accurate label with a legend that cannot be removed without destroying the substrate itself.
L-01
Laser-Fused Legend
Sub-Surface Permanent Marking
L-02
Anodic Oxide Layer
Hardened Al₂O₃ — 10–25 µm
L-03
Dye Infill
Colour Sealed into Anodic Pores
L-04
Sealing Treatment
Hot / Cold Nickel Acetate Seal
L-05
Aluminium Substrate
1050 / 5005 Alloy — 0.3–1.5 mm
L-06
Formed Edge
Laser Cut / Die Cut / Sheared
L-07
Adhesive System
3M 467 / VHB / Rivet Ready
L-08
Release Liner
Peelable Field-Install Backing
Technical Parameters
Material & Process Specs
Standard performance parameters for our anodized aluminium label range. All values configurable to your application requirements.
Materials & Configuration
Built to Your Anodise Spec
Anodise type, colour, marking method, and fixing arrangement selected to match your product's service life, environment, and brand specification.
Anodise Types
Marking Technologies
Colour Options
Fixing Options
Capabilities
Feature & Build Variants
Anodise grade, colour, marking method, serialisation, and fixing options — configured precisely to your label specification and environment.
Industrial Supply
Built to Outlast the Equipment It Identifies
Sub-Surface Permanence by Design
Legend layout, hole pattern, and profile all produced from your DXF or PDF — dimensionally exact, revision-controlled, and repeatable across batches.
Prototype to Volume
Single samples for colour and finish approval before committing to production. No tooling re-cost when volumes scale.
Abrasion-Resistant by Process
Laser-fused legends sit beneath the sealed anodic layer — they cannot be scratched, rubbed, or solvent-wiped away. The marking outlasts the equipment.
Mark Depth Verified on Production
Anodic layer thickness, colour delta, legend legibility, and dimensional accuracy checked to your acceptance criteria on every batch.
Applications
Industries Served
Specified wherever a label must survive the full service life of the equipment — heat, chemicals, UV, abrasion, and regulatory inspection cycles included.
Labels That Outlast
the Equipment.
Share your legend layout, colour spec, or DXF file — we'll come back with a material recommendation and a detailed manufacturing quote.
